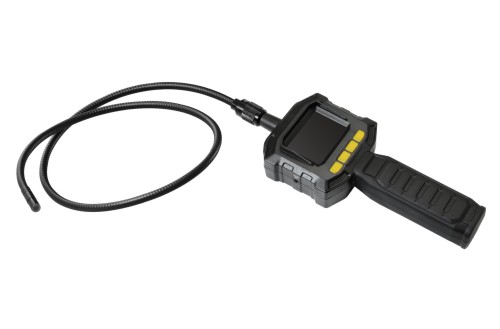

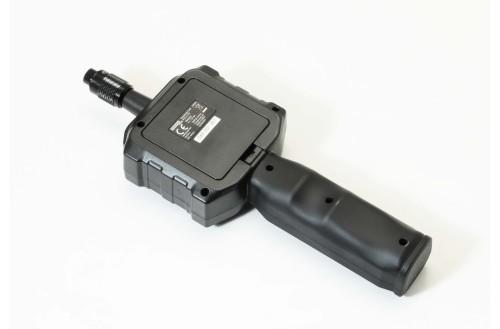

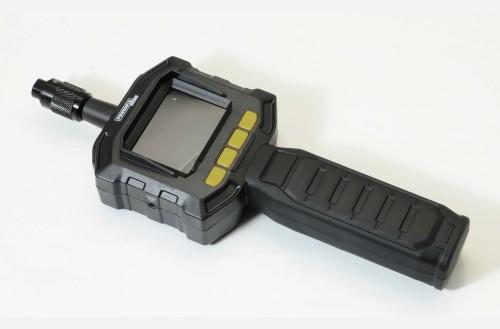

- Product Name：GL8898 Integrated Inspection Camera Waterproof Inspection Camera With Color LCD Monitor

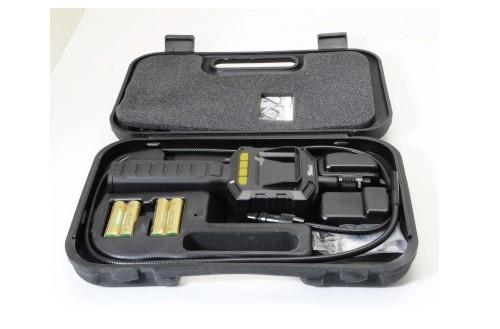

- Configuration
- Speciality
l Video out function for viewing in big screen
l Image flip function to view in diferent angles
l Light weight compact design to easily find, diagnose and solve problem
l Adjustable brightness on led-mounted LED right
l 2.4 TFT-LCD color monitor, brightness adjustable
l Mini 8mm waterproof camera with flexible extended tube
l Manufactured and tested to IP67 waterproof standard
l AA batteries for power supply
GL8898 Product specification
| Item | Unit | Specification |
| Camera section | ||
| Image Sensor | Inch | 1/9-inch CMOS |
| Effective Pixels | pixels | 640*480 |
| Video Format | NTSC/PAL | |
| Lens Mount | color, F=2.8 | |
| Horizontal Angle of view | Degree(°) | 48° |
| Minimum 111umination | Lux | 0(LED ON) |
| Power Supply | VDC | 3.3V |
| Consumption Current | mA | 160(max) |
| The focal length | cm | 8~15 |
| Operation Temperature | ℃ | -10~+50 |
| Storage Temperature | ℃ | -20~+60 |
| Operation Humidity | RH | 15%~85% |
| Dimensions | mm | Φ8 |
| Waterproof grade | IP67 | |
| Liquid crystal display | ||
| Screen Size | Inch | 2.31 |
| Screen Resolution | dot | 320(R.G.B.) X 240 |
| Effective display area | mm | 46.75 (w) x 35.06 (h) |
| Pixel size | mm | 0.0487 (w) x 0.1461 (v) |
| According to the color | 262k | |
| View angle | degree | U 20; L 50; D 40; R 40 (typ) |
| Response time | ms | 25ms |
| Contrast | 300 | |
| Video system | NTSC/PAL | |
| Brightness | cd/m2 | 220(typ) |
| The machine part | ||
| Battery capacity | AA 1.5V x 4 | |
| Working time | Hour | 6(max) |
| Consumption current | mA | 238+-5mA/6V (max) |
| Output signal impedance | ohm | 75 |
| Output signal Level | Vp-p | 0.9-1.3 |
| Working temperature | ℃ | -10 ~ +40 |
| Working humidity | RH | 85% |
| Weight | g | 312 |
