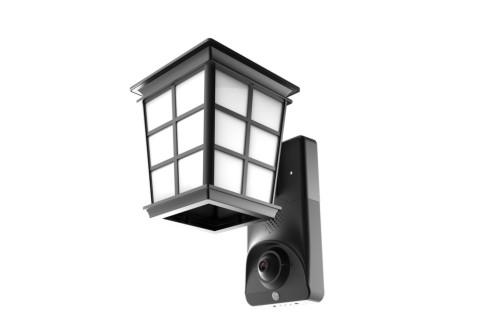

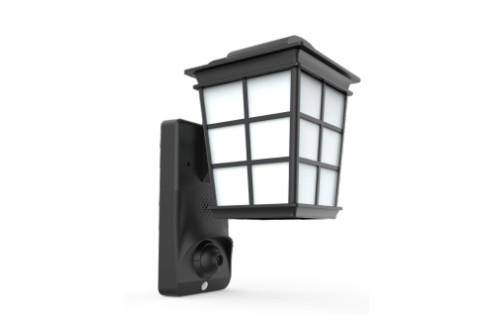

- Product Name：T5900HCA Lamp Camera Wireless HD WIFI Smart Visible Lamp Camera
- Configuration
- Speciality
l Have all IP camera features and lighting function.
l Free App, iOS/Android smart devices remote control and real-time view.
l High-performance image sensor, clear images, 1080P real-time view.
l Built-in WiFi module and antenna, WiFi connection.
l RJ45 connector, support cable connection, stable and reliable image transmission.
T5900HCA Product specifications
| Item | Unit | Specification |
| IP Camera | ||
| Operation system | Linux | |
| Image senso | Inch | 1/2.7" CMOS |
| Camera resolution | pixels | 200W |
| Viewing angle | Degree(°) | D:100±5 |
| Minimum illumination | Lux | >5±0.5（OFF），<2±0.5(ON) |
| Rotation Angle | Degree(°) | Pan: 80° Tilt:40° |
| Video Compressio | H.264 | |
| Video Resolution | HD: 1920 x 1080/15fps VGA: 640 x 480/20fps |
|
| Video Code Rate) | Dual Streams 主码流：2Mbps 次码流：512kbps |
|
| Audio Compression | AAC | |
| Alarm Mode | Motion detection + Passive Infrared detection | |
| Wireless Transmission Way | WiFi | |
| Transmission Range | 100m in the open | |
| Transmitting Power | dBm | 802.11b: 21.5±1db EVM≦-20db 802.11g: 19.5±1db EVM≦-28db 802.11n: 18.0±1db EVM≦-28db |
| Receiving Sensitivity @PER | 135M:-67dBm@10%PER, 54M:-75dBm@10%PER, 11M:-86dBm@8%PER, |
|
| Wireless Standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n | |
| Interface | E26/E27 螺口电灯接口 RJ45 |
|
| Power Supply | AC:100~240V | |
| Working current | mA | DC5V/1A 700(max) |
| Remote monitor | Support Android and IOS | |
| Recording media | 内置自弹式TF卡卡座，最大支持TF卡容量32GB | |
| PIR | M | 3 |
| LED | W | 6W |
| 安装方式 | mm | 挂墙 |
| 工作温度(Operation temperature) | ℃/F | -40℃~+55℃ (-40℉~+131℉) |
| 储存温度(Storage temperature) | ℃/F | -40℃~+60℃ (-40℉~+140℉) |
| 工作湿度(Operation humidity) | RH | 15%~85% |
| 整机重量(Weight) | g | 1810g±5% |
